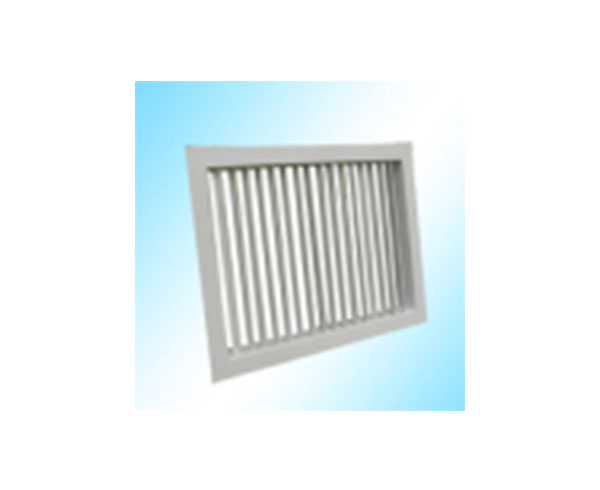

1.Single-layer louvres (aluminum)

Uses: Single-layer louvers for air-conditioning system at the end, can be used as return air and supply air.

2.Double-layer louvres(aluminum)

1.uses:it is installed in the end of central air conditioning system, for supplying air.

2, double-layer makes a wide range of air supply, double-leaf can be in the range of 0 to 900.

3.Inner control, also have control valves.

4, Process: aluminum alloy cutting, welding into a frame, install the blade group.

5.Surface by anodizing; can also be based on user requirements

 6, For painting or electrostatic spray treatment, the surface color based om the needs of the decoration. It has different colors, pigments containing UVS light stabilizer. It  do not fade and change color, with UV resistance, life of more than 20 years.

3.Round diffuser

It use line type degin, can be used for indoor and circular points of the send, return air, can be installed in the side wall or ceiling.The maximum continuous length L of vanecan be made 3m. Two or more sections can be used together. Patchwork to have plug-in board.

The diffuser can also be formed in an arc shape. users can also be customized according to need for special size specifications,. The outlet using high-quality aluminum alloy profiles, profiles by surface anodizing.

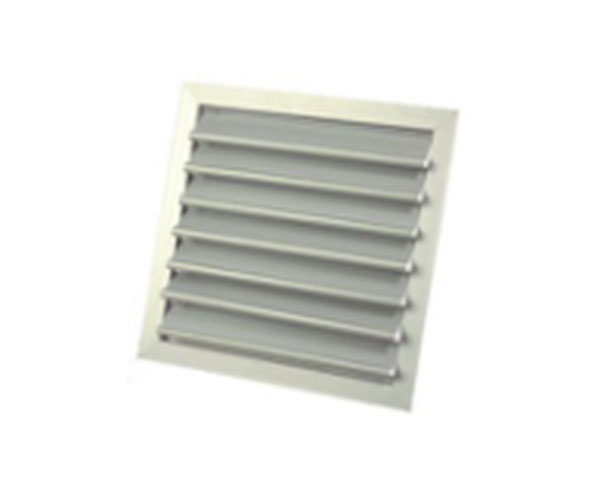

4.The vertical louvers aluminum alloy louvres

The vertical louvers used for positive pressure in the air-conditioned room automatic exhaust.It rely on the louvres of the louvre from the vertical and sagging, isolated indoor and outdoor air exchange.Air flow can not flow back into the room, the tuyere has a one-way check effect.

5.Positive pressure air outlet

Positive pressure air outlet is usually installed in the aisle or smoke front room and air supply system without door. when the fire occurs, the smoke sensor sends a fire signal, the control center through DC24V power to the air outlet on the control mechanism, so that air supply quickly open, can also be manually opened for air.

6.Rain shutters outlet (aluminum)

Rainproof shutters are usually installed on the external wall, with the function of preventing the rain from splashing into the interior. Generally used as a new outlet, and sometimes as a gas port.When the wind resistance bigger, in the 2m / s wind speed, the total pressure loss of 25Pa, as the inlet to use, with insect nets.

Material:The use of high-quality aluminum frame, the installation of aluminum alloy cutting blade welding after the leaves made of aluminum are anodized.
